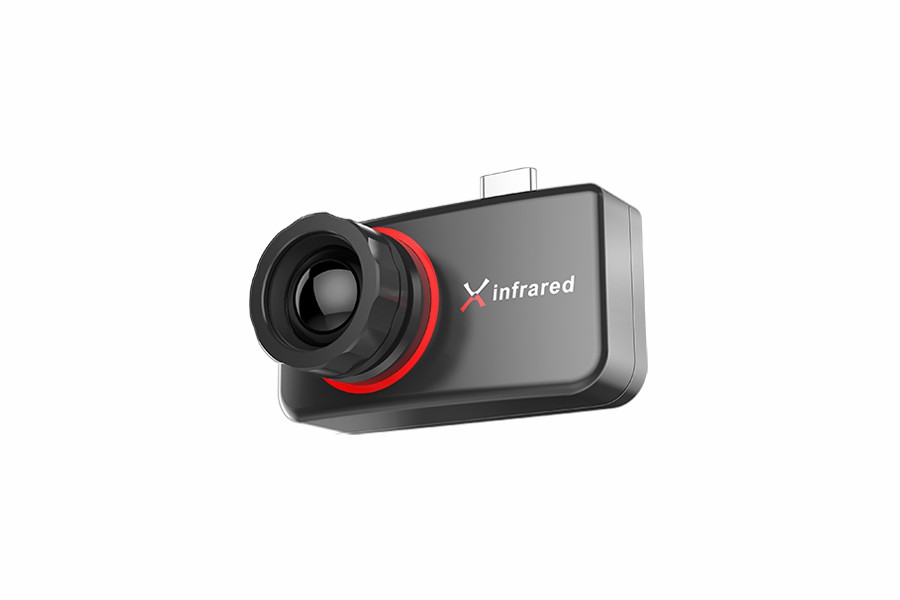

As the first smartphone attached thermal imaging camera by Infiray, Xtherm brings you a whole new camera experience. With the USB type-C interface, the Xtherm can be directly connected to smartphones, tablets, computers and other devices that support this interface. With APP or PC software, Xtherm enables real-time thermal image display and temperature statistics etc.
Meet XthermSeries
The Xtherm Series is an ultra-portable infrared camera for smartphone that opens up smart life. With few steps, it can not only create excellent imaging effects, but also capture temperature in real time which makes it a reliable companion for outdoor observation, camping, survival in the wild and home use.
High Image Quality
Embedded with IRay 384 × 288 / 17μm vanadium oxide VOx detector, the Therm series provides clear images and makes searching in darkness much easier.
High Frame Rate
25Hz frame rate output, capable of capturing every wonderful moment during the nights.
Germanium Single Crystal Alloy Lens
F1.0 large aperture lens to enhance image quality.
Superior Temperature Measurement Accuracy
Equipped with a unique temperature measurement algorithm, and professional-level thermal analysis software, high accuracy of temperature measurement, meeting various types of temperature and thermal analysis needs.
Ultralow Power Consumption <500mK
Battery-free design and long endurance usage for every charge.
Hot Target Tracking
High/low temperature spot tracking are supported as well as any three points of temperature measurements.
Environmental Compensation Correction
Environmental compensation correction guarantees more accurate temperature measurement in various environments.
Plug-and-Play, Easy to Operate
The Therm series can connect to a smartphone or tablet with the free APP via the Type-C interface.
Secondary Development
SDK is provided to facilitate secondary development for customization in various industries.
| Resolution, pixels | 240×180 |
| Pixel size,μm | 17 |
| NETD, mk | ≤60@25℃,f#1.0 |
| MRTD, mk | ≤500@25℃,f#1.0 |
| Objective Lens, mm | 6.8 |
| Frame Rate, Hz | 25 |
| FOV(field of view), ° | 34.8°x26.8° |
| Digital Zoom | / |
| Operating Temp. Range | -10℃～+50℃ |
| Temp. Measuring Rang | -20℃~+120℃ |
| Temp. Measuring Accuracy | ±3℃or±3% of temperature measuring range |
| Temp. Correction | Manual/Auto |
| Power Consumption, mW | <500 |
| Weight(with lens), g | <40 |
| Dimension(with lens), mm | 49.5*26*27.5 |
| Phone Compatibility | Android 6.0 or above* |
| Image Enhancement | Digital enhancement |
| Image Calibration | Manual/Auto(per 3 min when no manual operation) |
| Color Palette | White hot/Black hot/Multiplepseudo color options |
| SDK Develop | Support |
| Temp. Statistics | Support max./min./center temp. display, with up to three spots statistics |
| Photo & Video | Support photos/ video storage .etc |
| Online Software Update | Support |
| Resolution, pixels | 384×288 |
| Pixel size, μm | 17 |
| NETD, mk | ≤60@25℃,f#1.0 |
| MRTD, mk | ≤500@25℃,f#1.0 |
| Objective Lens, mm | 6.8 |
| Frame Rate, Hz | 25 |
| FOV(field of view), ° | 55.7°x41.6° |
| Digital Zoom | / |
| Operating Temp. Range | -10℃～+50℃ |
| Temp. Measuring Rang | -20℃~+120℃ |
| Temp. Measuring Accuracy | ±3℃or±3% of temperature measuring range |
| Temp. Correction | Manual/Auto |
| Power Consumption, mW | <500 |
| Weight (with lens), g | <40 |
| Dimension (with lens), mm | 49.5*26*30 |
| Phone Compatibility | Android 6.0 or above* |
| Image Enhancement | Digital enhancement |
| Image Calibration | Manual/Auto(per 3 min when no manual operation) |
| Color Palette | White hot/Black hot/Multiple pseudo color options |
| SDK Develop | Support |
| Temp. Statistics | Support max./min./center temp. display, with up to three spots statistics |
| Photo & Video | Support photos/ video storage .etc |
| Online Software Update | Support |
| Resolution, pixels | 384×288 |
| Pixel size, μm | 17 |
| NETD, mk | ≤60@25℃,f#1.0 |
| MRTD, mk | ≤500@25℃,f#1.0 |
| Objective Lens, mm | 13 |
| Frame Rate, Hz | 25 |
| FOV(field of view), ° | 28.4°x21.4° |
| Digital Zoom | / |
| Operating Temp. Range | -10℃～+50℃ |
| Temp. Measuring Rang | -20℃~+120℃(extended to 400℃) |
| Temp. Measuring Accuracy | ±2℃or±2% of temperature measuring range |
| Temp. Correction | Manual/Auto |
| Power Consumption, mW | <500 |
| Weight (with lens), g | <40 |
| Dimension (with lens), mm | 49.5*26*30 |
| Phone Compatibility | Android 6.0 or above* |
| Image Enhancement | Digital enhancement |
| Image Calibration | Manual/Auto(per 3 min when no manual operation) |
| Color Palette | White hot/Black hot/Multiple pseudo color options |
| SDK Develop | Support |
| Temp. Statistics | Support max./min./center temp. display, with up to three spots statistics |
| Photo & Video | Support photos/ video storage .etc |
| Online Software Update | Support |
| Model | Xtherm T2S | Xtherm T3S | Xtherm T3Pro |
| Resolution, pixels | 240×180 | 384×288 | 384×288 |
| Pixel size,μm | 17 | ||
| NETD, mk | ≤60@25℃,f#1.0 | ||
| MRTD, mk | ≤500@25℃,f#1.0 | ||
| Objective Lens, mm | 6.8 | 13 | |
| Frame Rate, Hz | 25 | ||
| FOV(field of view), ° | 34.8°x26.8° | 55.7°x41.6° | 28.4°x21.4° |
| Digital Zoom | / | ||
| Operating Temp. Range | -10℃～+50℃ | ||
| Temp. Measuring Rang | -20℃~+120℃ | -20℃~+120℃(extended to 400℃) | |
| Temp. Measuring Accuracy | ±3℃or±3% of temperature measuring range | ±2℃or±2% of temperature measuring range | |
| Temp. Correction | Manual/Auto | ||
| Power Consumption, mW | <500 | ||
| Weight(with lens), g | <40 | ||
| Dimension(with lens), mm | 49.5*26*27.5 | 49.5*26*30 | 26*26*26 |
| Phone Compatibility | Android 6.0 or above* | ||
| Image Enhancement | Digital enhancement | ||
| Image Calibration | Manual/Auto(per 3 min when no manual operation) | ||
| Color Palette | White hot/Black hot/Multiplepseudo color options | ||
| SDK Develop | Support | ||
| Temp. Statistics | Support max./min./center temp. display, with up to three spots statistics | ||
| Photo & Video | Support photos/ video storage .etc | ||
| Online Software Update | Support | ||
*Support the mainstream mobile phone system, part of the system untested.
