Thermal Imaging Riflescope+Clip on-Hybrid Series
Thermal Imaging Riflescope+Clip on-Hybrid Series

Thermal Imaging Riflescope+Clip on-Hybrid Series

Thermal Imaging Riflescope+Clip on-Hybrid Series

InfiRay Hybrid offers the versatility to hunt using either a thermal riflescope or clip-on. Hybrid is equipped with optional external LRF and ballistic calculation to make accuracy up to ±1MOA. It adopts a 2K level 2560×1920 full-color OLED display, which provides excellent display performance while its eyepieces are designed with user comfort and safety in mind. Hybrid aims to bring you a hunt like never before.


Meet HybridSeries


More Functional

Hybrid supports both Riflescope and Clip-on Mode. The two modes can be switched in seconds without changing the eyepiece.



Recoil-Activated Video

Hybrid adds a recoil-activated video function to lock the 30-second clips before and after shooting so that no wonderful moments are missed. Support video & audio recording. Images and videos can be played back within devices and transmitted through WiFi.



Ultra Clear

Apply a 2K level display to the outdoor hunting field, high resolution 2560×1920 silicon-based OLED display, high contrast and low power consumption. Able to bring users an ultra-clear and comfortable visual experience.



Extra Large Eyebox

The larger eyebox makes it easy to see clear images in dynamic situations. The 60 mm long eye relief design avoids eye injury caused by the recoil of shooting.




Ultra Precise

Hybrid supports external laser range finder to generate accurate aiming points through automatic ballistic calculation of rangefinding results. The accuracy of Hybrid can reach ±1MOA.

Hybrid can realize smaller per scale to 1.2cm @100m when zeroing. In addition, considering the personal habits of different users, Hybrid is equipped with 7 reticle patterns to meet the aiming needs to the greatest extent.


Waterproof & Dustproof

The whole machine is waterproof (IP67) and dustproof, which can be used in harsh conditions.


Recoil-absorbing Mount

The patented recoil-absorbing mount and new assembly process help Hybrid pass the rigorous reliability test. The result shows it does not move from the zero position after more than 20,000 times of 1200g impact. Hybrid is suitable for the long-term use of a gun that is chambered for the 7.62×39mm cartridge.

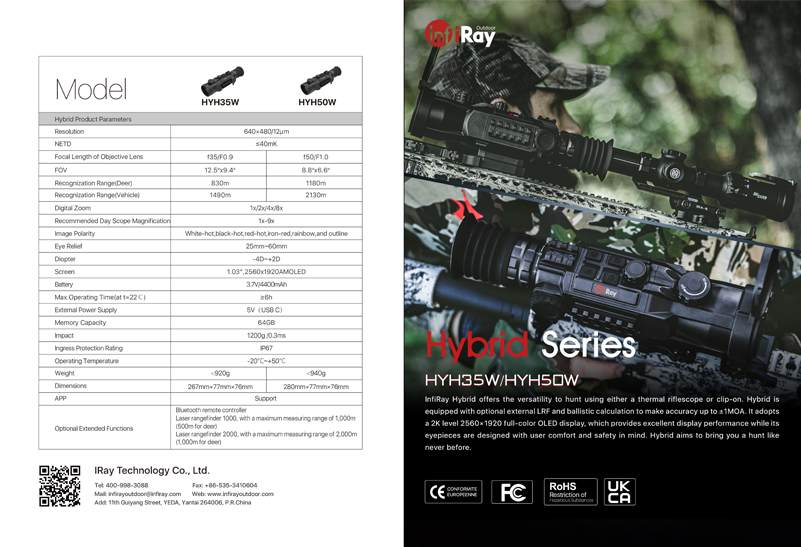

  • HYH50W
ModelHybrid HYH50W
Detector Specifications
TypeUncooled Vox
Resolution,pixels640×480
Pixel size,μm12
NETD,mk≤ 25
Frame rate,Hz50
Optical Specifications
Objective Lens,mm50
Field of View(H×V),°8.8°x6.6°
Linear Field of View(H×V),m at 100m15.4×11.5
Magnification, ×2.5~20
Eye Relief,mm60
Exit pupil Diameter,mm23
Diopter,D-4~ +2
Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)2600
Display Specifications
TypeAMOLED
Resolution,pixels2560×1920
Battery Power Supply
Battery1 Built-in li-ion battery/4.4Ah/3.7V
Max. operating Time(22℃)*,h6
External Power Supply5V (Type C)
Physical Specifications
Wi-Fi/APPSupport (InfiRay outdoor)
Photo/Video Recordersupport
MICsupport
Bluetoothsupport
Memory Capacity64GB
IP ratingIP67
Operating Tempeture,℃-20℃~+50℃
Weight,g930
Dimension,mm280×77×76
Body MaterialAluminium alloy
Connections and Compatibilities
Impact1200g
Recommended Magnification of the Day Sight, ×1-6
Mountsupport
Remote controlsupport
Functions
Laser rangefindersupport(external)
Measuring Range,m1000/2000
Measuring Angle, °/
Measurement Accuracy±1m
Wavelength, nm905
Safety class for laser equipment according to IEC 60825-1:20143R



  • Product Parameters Comparison
  • ModelHybrid HYH50W
    Detector Specifications
    TypeUncooled Vox
    Resolution,pixels640×480
    Pixel size,μm12
    NETD,mk≤ 25
    Frame rate,Hz50
    Optical Specifications
    Objective Lens,mm50
    Field of View(H×V),°8.8°x6.6°
    Linear Field of View(H×V),m at 100m15.4×11.5
    Magnification, ×2.5~20
    Eye Relief,mm60
    Exit pupil Diameter,mm23
    Diopter,D-4~ +2
    Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)2600
    Display Specifications
    TypeAMOLED
    Resolution,pixels2560×1920
    Battery Power Supply
    Battery1 Built-in li-ion battery/4.4Ah/3.7V
    Max. operating Time(22℃)*,h6
    External Power Supply5V (Type C)
    Physical Specifications
    Wi-Fi/APPSupport (InfiRay outdoor)
    Photo/Video Recordersupport
    MICsupport
    Bluetoothsupport
    Memory Capacity64GB
    IP ratingIP67
    Operating Tempeture,℃-20℃~+50℃
    Weight,g930
    Dimension,mm280×77×76
    Body MaterialAluminium alloy
    Connections and Compatibilities
    Impact1200g
    Recommended Magnification of the Day Sight, ×1-6
    Mountsupport
    Remote controlsupport
    Functions
    Laser rangefindersupport(external)
    Measuring Range,m1000/2000
    Measuring Angle, °/
    Measurement Accuracy±1m
    Wavelength, nm905
    Safety class for laser equipment according to IEC 60825-1:20143R
