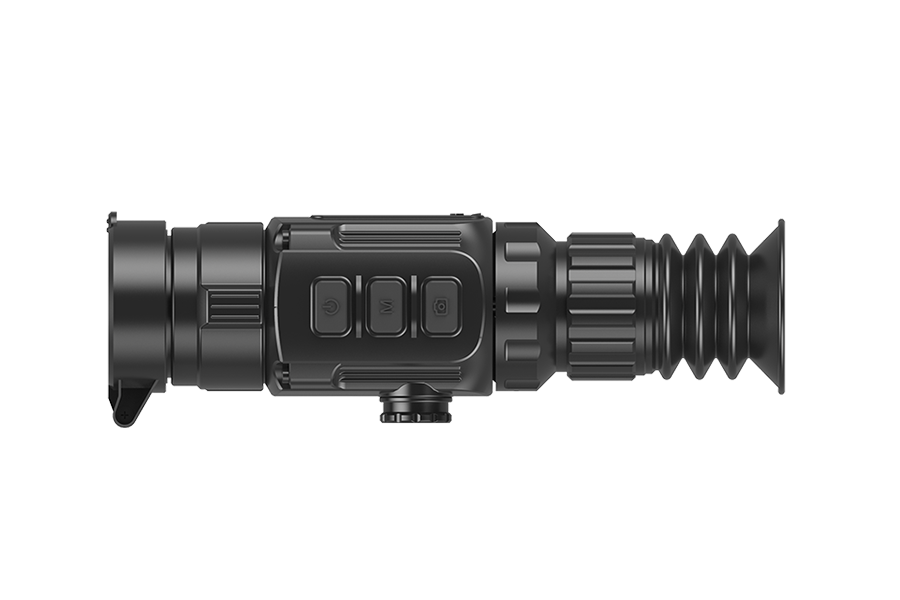

Thermal Imaging Rifle Scope Saim SCT35 V2
Thermal Imaging Rifle Scope Saim SCT35 V2

Thermal Imaging Rifle Scope Saim SCT35 V2

Thermal Imaging Rifle Scope Saim SCT35 V2

The cutting-edge design of the Saim SCT35 V2 thermal imaging scope makes it a totally outstanding performer. Adjustable image brightness and contrast function. Experienced users will have more options in tuning the image for different scenarios. Besides more powerful processing chip, it also integrates with more image processing algorithms, providing clearer and more delicate images.




MeetSaimSCT35 V2



Higher Image Quality

SCT35 V2 adopts the 12μm detector with 384×288 resolution, 35mm-focal-length objective lens, upgrade OLED display, and updated module algorithms, providing clearer images.




New 1024×768 OLED

Upgrade OLED display. High contrast significantly improves the clarity, details, and layering of thermal images.




Adjustable image brightness and contrast

Experienced users have more options in tuning the image for different scenarios. Users can adjust image brightness and contrast, providing better playability.




High Shock Resistance

The Saim series features exceptionally high shock resistance up to 1000G.


Ultra-clear Mode

Ultra-clear mode is special for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.




Easily upgrade function

Enhanced EMMC (Embedded Multi Media Card) upgrade function. Users can copy upgrade program into scope and upgrade it within the scope directly.

Eight different reticles and greater2.81visual magnification

To satisfy different hunting requirements of users, eight different reticles are designed for users to choose from. The more advanced 12um detector is adopted, which has a greater visual magnification2.81×and detection range1818meters.




Picture-in-Picture Function

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while retaining the rest of the field of view visible.




External Power Supply

The working time can be significantly prolonged by connecting with high capacity external power supply units, i.e. portable power source via Type-C cable presented in the package.




Built-in Video recorder and WIFI connection

SCT35 V2 is built with memory of 32GB which can support to store video and pictures.

The wifi hotspot of the product supports simultaneous connection of four devices.




Built-in Accelerometer and Digital compass

Built-in accelerometer and digital compass improve accuracy by precisely identifying angle and inclination. The Saim Series can indicate the direction and degree of lateral tilting.





Download

Brochure-SCT35 V2

Brochure-SCT35 V2

Manual-SCT35 V2

Manual-SCT35 V2
  • SCT35 V2
Resolution384*288
Pixel Size,μm12
NETD, mk≤40
Frame Rate, Hz50
Objective lens, mm35
Field of view7.5°x5.7°
Magnification, ×2.81- 11.24
Diopter Adjustment-5D~+5D
Display Resolution1024*768 OLED
Magnification1x/2x/4x
WiFi & RecorderSupported
Compass & MsensorSupported
Amount of built-in memory, GB32
Battery TypeCR123 x 2
Max. Battery Life, h4h
Weight (without batteries), g<420g
Detection Range1818m
Dimension, mm195×61×61
Detection Range, m (Target size:1.7m×0.5m, P(n)=99%)1818


  • Product Parameters Comparison
  • ModelSCT35 V2SCH50
    Resolution384×288640×512
    Pixel Size,μm12
    NETD, mK≤40
    Frame Rate, Hz50
    Objective lens, mm3550
    Field of view7.5°x5.7°8.8°×6.6°
    Magnification, ×2.81~11.242.91~11.64
    Diopter Adjustment, D-5~+5
    Display Resolution1024×768 OLED
    E-zoom, ×1/2/3/4
    WiFi & Recorder
    Compass & Msensor
    Amount of built-in memory, GB32
    Battery TypeCR123×2
    Max. Battery Life, h3.5
    Weight (without batteries), g<420<570
    Dimension, mm195×61×61216×61×61
    Detection Range, m (Target size:1.7m×0.5m, P(n)=99%)18182597
