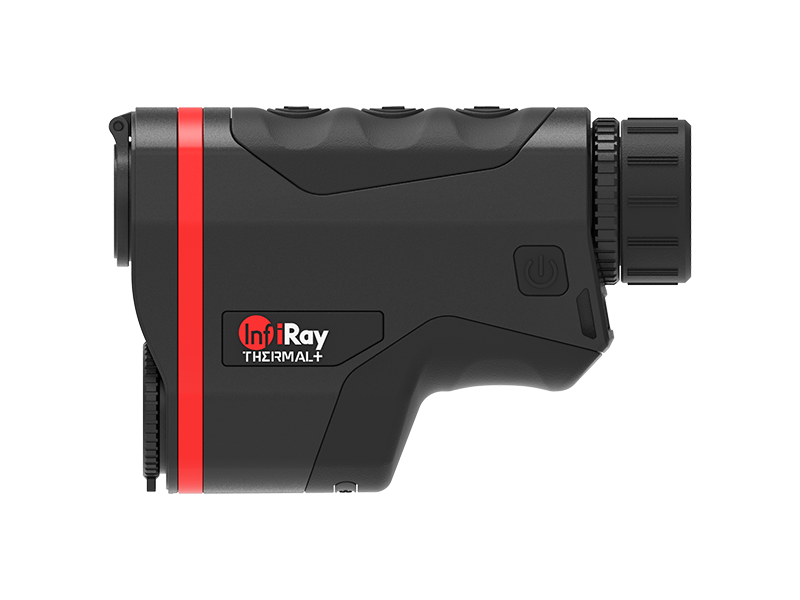

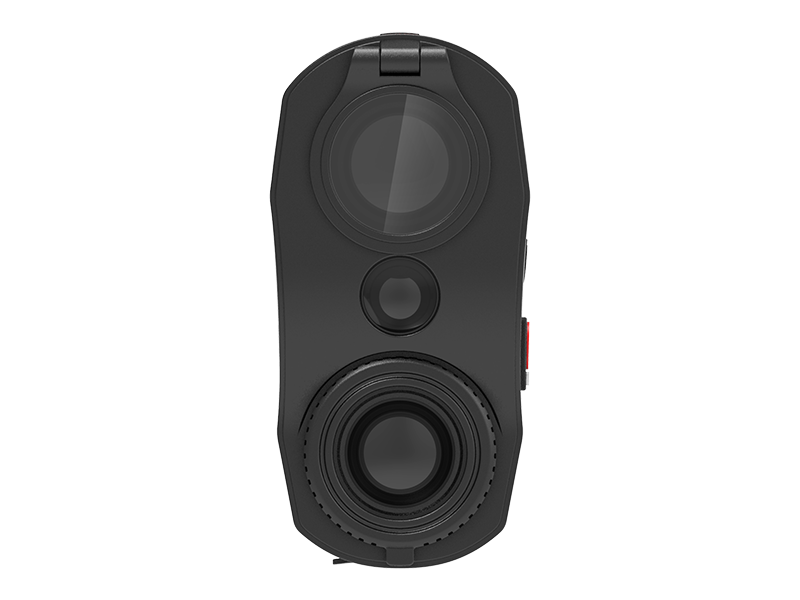

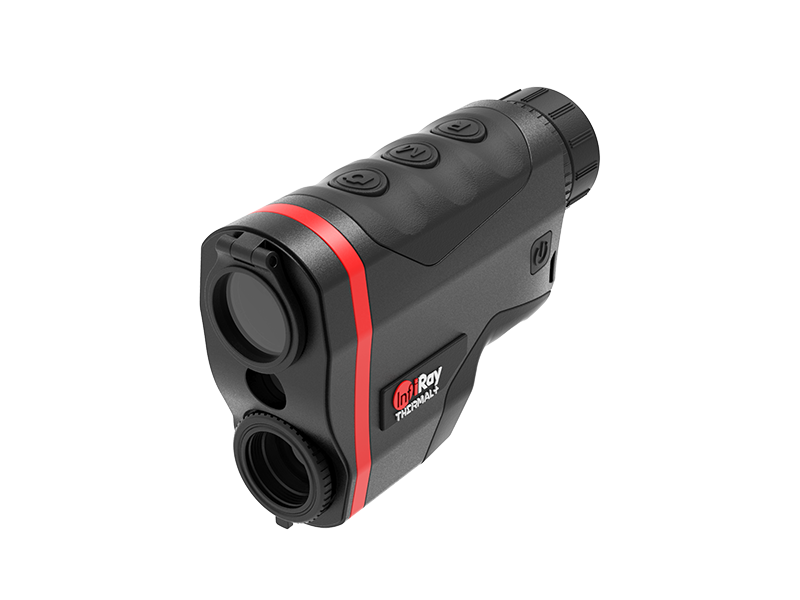

Thermal+ Dual Series DP19/6×24WRG
Thermal+ Dual Series DP19/6×24WRG

Thermal+ Dual Series DP19/6×24WRG

Thermal+ Dual Series DP19/6×24WRG

Dual DP19/6×24WRG is the first monocular of Thermal+, which means one device has combined the functions of 3 products—daytime monocular, laser rangefinder and thermal monocular to ensure all-weather use from day to night. Dual's unique target highlighting mode could easily distinguish the target camouflaged in the background, accurately capture the target while retaining the real visual perception. Start your 3-in-1 adventure now and feel the extraordinary experience brought by Thermal+ Dual!

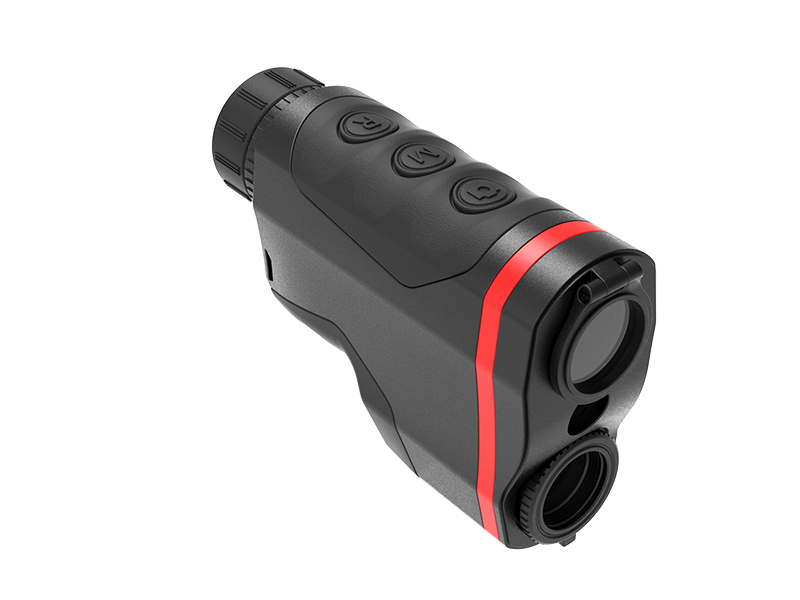

Meet Thermal+ Dual DP19/6×24WRG

Three in One

Optical fusion technology is adopted to realize the fusion of daylight, laser and infrared in one device. Functions of daytime monocular, laser rangefinder and thermal monocular are all available, reducing the units and weight of equipment carried by users. Go out without burden!



Multiple Use Modes

Dual DP19/6×24WRG can quickly switch between thermal mode, target highlighting mode and direct-view mode.

When the target is camouflaged in the background environment, the target highlighting mode can help the user to accurately distinguish the target from the background and facilitate target capture.



Powerful Rangefinder with Measurable Angle

A laser rangefinder is integrated into the Dual, rangefinding can be carried out in eac mode, or even at night.

Dual features multiple rangefinding functions such as single ranging and continuous ranging, the ranging range is up to 1500m (accuracy is ±1m).

Dual also supports angle display during ranging. The measurable angle is ±60°(accuracy is ±1°).

There are up to 9 laser selections and 2 laser colors to choose.



Remarkable Optical Performance

Using a new optical fusion design and lens coating technology, Dual can achieve high-definition and color reproduction to the greatest extent. The observation effect is close to the effect of the naked eye,  without fatigue for a long use-time.



Awesome User Experience

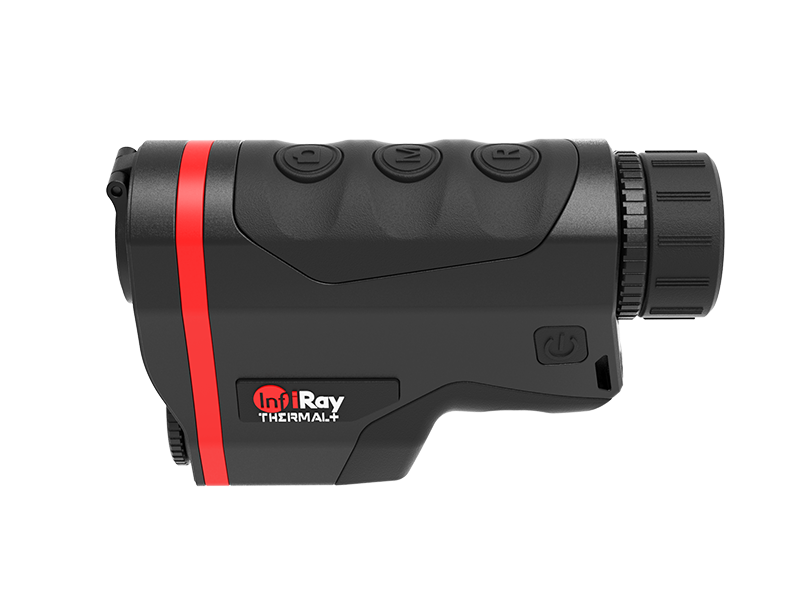

Dual is comfortable to hold and is designed based on ergonomics, and the button layout is reasonable enough for one-hand operation.

Its appearance is made of magnesium alloy, the whole unit is compact, lightweight and convenient to carry, bringing an unusual experience.

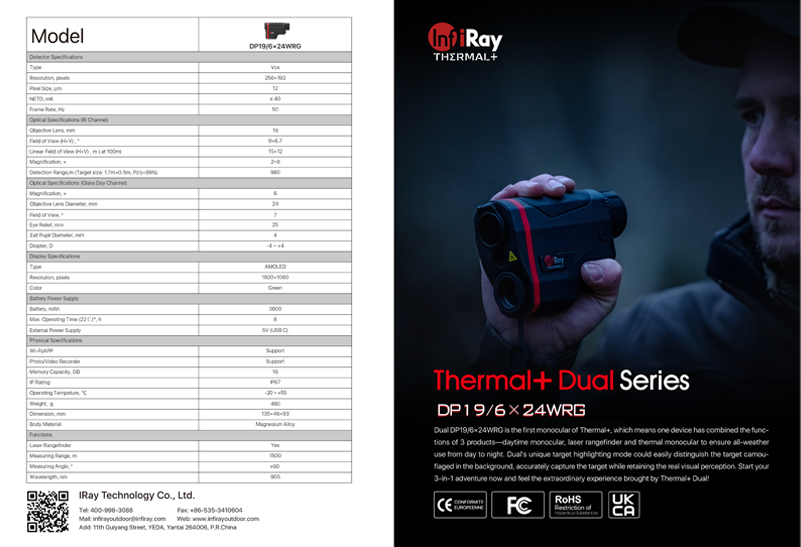

  • DP19/6×24WRG
ModelDP19/6×24WRG
Detector   Specifications
TypeVox
Resolution,pixels256×192
Pixel Size,μm12
NETD,mK≤   25
Frame Rate,Hz50
Optical   Specifications(IR Channel)
Objective Lens,mm19
Field of View(H×V),°9×6.7
Linear Field of View(H×V),m ( at 100m)15×12
Magnification, ×2~8
Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)980
Optical   Specifications(Glass Day Channel)
Magnification, ×6
Objective Lens Diameter,mm24
Field of View,°7
Eye Relief,mm25
Exit Pupil Diameter,mm4
Diopter,D-4   ~ +4
Display   Specifications
TypeAMOLED
Resolution,pixels1920×1080
ColorGreen
Battery   Power Supply
Battery, mAh3600
Max. Operating Time(22℃)*,h8
External Power Supply5V   (USB C)
Physical   Specifications
Wi-Fi/APPSupport
Photo/Video RecorderSupport
Memory Capacity,GB16
IP RatingIP67
Operating Tempeture,℃-20   ~ +55
Weight,g460
Dimension,mm135×46×93
Body MaterialMagnesium   Alloy
Functions
Laser RangefinderYes
Measuring Range, m1500
Measuring Angle, °±60
Wavelength, nm905


  • Product Parameters Comparison
  • ModelDP19/6×24WRG
    Detector   Specifications
    TypeVox
    Resolution,pixels256×192
    Pixel Size,μm12
    NETD,mK≤   25
    Frame Rate,Hz50
    Optical   Specifications(IR Channel)
    Objective Lens,mm19
    Field of View(H×V),°9×6.7
    Linear Field of View(H×V),m ( at 100m)15×12
    Magnification, ×2~8
    Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)980
    Optical   Specifications(Glass Day Channel)
    Magnification, ×6
    Objective Lens Diameter,mm24
    Field of View,°7
    Eye Relief,mm25
    Exit Pupil Diameter,mm4
    Diopter,D-4   ~ +4
    Display   Specifications
    TypeAMOLED
    Resolution,pixels1920×1080
    ColorGreen
    Battery   Power Supply
    Battery, mAh3600
    Max. Operating Time(22℃)*,h8
    External Power Supply5V   (USB C)
    Physical   Specifications
    Wi-Fi/APPSupport
    Photo/Video RecorderSupport
    Memory Capacity,GB16
    IP RatingIP67
    Operating Tempeture,℃-20   ~ +55
    Weight,g460
    Dimension,mm135×46×93
    Body MaterialMagnesium   Alloy
    Functions
    Laser RangefinderYes
    Measuring Range, m1500
    Measuring Angle, °±60
    Wavelength, nm905
