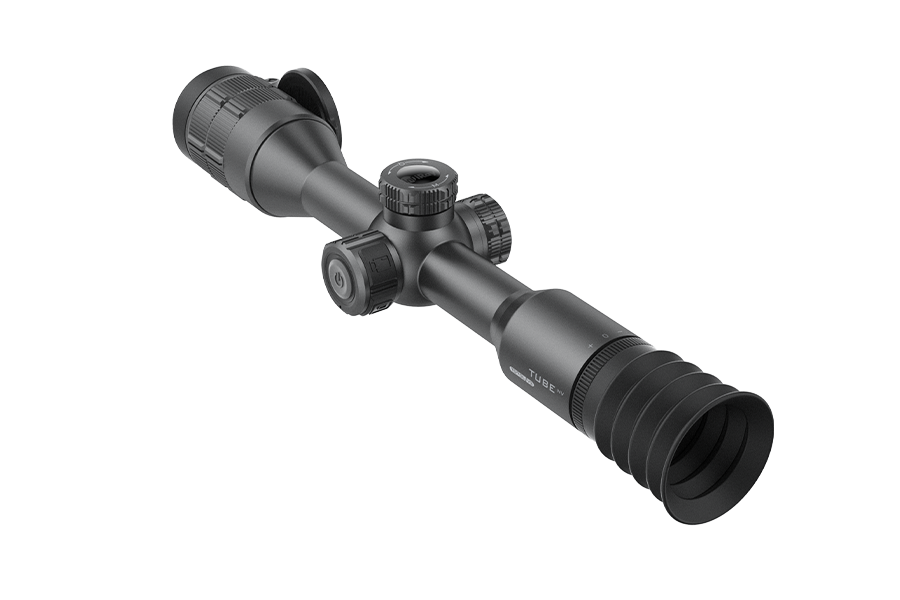

Digital Night Vision Riflescope TUBE NV v2 Series- TD70L V2
Digital Night Vision Riflescope TUBE NV v2 Series- TD70L V2

Digital Night Vision Riflescope TUBE NV v2 Series- TD70L V2

Digital Night Vision Riflescope TUBE NV v2 Series- TD70L V2

Tube NV excels at capturing clear target details. Leverage the power of a 1980x1080 sensor with 4μm pixels for exceptional low-light sensitivity. Paired with a vibrant 1440x1080 OLED display, experience unparalleled precision and clarity in night shooting. Elevate your shooting experience with this unbeatable technology combination.


Next Level Low-Light Hunting Experience


The larger the pixel size, the more light each pixel can collect. With a pixel size of 4um, the Tube NV sensor demonstrates exceptional low-light sensitivity. Even one hour after sunset, Tube NV devices can display clear color images. In moonlit conditions, Tube NV excels at capturing clear target details. Leverage the power of a 1980x1080 sensor with 4μm pixels for exceptional low-light sensitivity. Paired with a vibrant 1440x1080 OLED display, experience unparalleled precision and clarity in night shooting. Elevate your shooting experience with this unbeatable technology combination.


1:1 Lossless Image Transmission


We use direct full-field screen capture for transmitting without any resolution missing, providing lossless images to achieve the clearest vision.

画板 2.png


70mm Focal Length


A longer focal length of lens could provide a better hunting experience for distant targets with an improvement in magnification.

画板 3.png

High Zeroing Precision


For a digital NV riflescope, each pixel corresponds to a specific angle of view. The smaller the angle (measured in mil or MOA), the greater the shooting precision. Our TUBE NV riflescope boasts a remarkable precision of 0.2 MOA (5.7mm@100m), ensuring unparalleled accuracy during zeroing. With this high-precision riflescope, you'll be able to consistently achieve precise and accurate shots.



Unveiling Day and Night's Secrets


During daylight hours, from dawn to dusk, when it's challenging for the human eye to discern target details, TUBE NV enhances your target recognition capabilities.

画板 5.png


Recoil Activated Video


The Tube NV offers an impressive array of features, including the Recoil Activated Video (RAV) function and the Mic function. Never miss a captivating moment again with RAV, as it automatically records the moments before and after your shot. Plus, with the Mic function, you can capture not only the visuals but also the accompanying audio, enhancing the overall experience. Experience the power of complete sensory immersion with the Tube NV.

画板 6.png

Classic Aesthetics


The Tube NV not only boasts a timeless and classical-style design that perfectly complements 30 mm standard mount rings, but it also allows for easy switching between traditional white light scopes and the Tube NV without the need for changing mount fixtures. This combination caters to the discerning needs of professional hunters who hold tradition in high regard, while also appreciating the convenience of modern technology. Experience the perfect fusion of aesthetics, functionality, and user-friendly design with the Tube NV.

画板 7.png

More Amazing benefits

5.5x magnification | Only 945g Weight | IP67 Waterproof | Picture-in-picture |






Download

Brochure- TD70L V2

Brochure- TD70L V2

TD50LV2 & TD70LV2 Quick Start Guide

TD50LV2 & TD70LV2 Quick Start Guide

TD70L V2 User Manual

TD70L V2 User Manual
  • TD70LV2
SpecsTD70LV2
Detector SpecificationsSensor Resolution, pixels1920 × 1080
Pixel Size, μm4
Frame Rate, Hz50/25/Auto
Optical SpecificationsObjective Lens, mm70mmF1.8
Field of View, º4.7×3.5
Linear Field of View(H×V),m@100m8.2×6.2
Optical Magnification, ×5.5~22.0
Digital Zoom, ×1 ~ 4
Eye Relief, mm45
Diopter Adjustment, D-4 ~ +4
Detection Range, m300
Display SpecificationsTypeOLED
Resolution, pixels1440×1080
Battery Power SupplyBattery TypeBuilt-in 6600mAh Battery Pack
Max. Operating Time(t=22ºC)*, h9
External Power Supply5V (Type C)
Physical SpecificationsWi-Fi / APPSupport (InfiRay outdoor)
Photo / Video RecorderSupport
Memory Capacity, GB32
IP RatingIP67
Operating Temperature,°C-20 ~ +50
Weight(Without the 18500 Battery), g945
Dimension, mm383 × 86 × 75
Body MaterialAluminum
Connections and CompatibilitiesMax. Recoil Power on Rifled Weapon (Eo), Joules6000
Aim Point, MOA/CLICK0.2 (5.6mm@100m)
MountStandard 30mmrings
FunctionIR Illuminator**, nm850 / 940 (Optional)
IR Power, w3
Mount30mm Rings
FunctionsLaser RangefinderSupport (Optional)



  • Product Parameters Comparison
  • SpecsTD70LV2
    Detector SpecificationsSensor Resolution, pixels1920 × 1080
    Pixel Size, μm4
    Frame Rate, Hz50/25/Auto
    Optical SpecificationsObjective Lens, mm70mmF1.8
    Field of View, º4.7×3.5
    Linear Field of View(H×V),m@100m8.2×6.2
    Optical Magnification, ×5.5~22.0
    Digital Zoom, ×1 ~ 4
    Eye Relief, mm45
    Diopter Adjustment, D-4 ~ +4
    Detection Range, m300
    Display SpecificationsTypeOLED
    Resolution, pixels1440×1080
    Battery Power SupplyBattery TypeBuilt-in 6600mAh Battery Pack
    Max. Operating Time(t=22ºC)*, h9
    External Power Supply5V (Type C)
    Physical SpecificationsWi-Fi / APPSupport (InfiRay outdoor)
    Photo / Video RecorderSupport
    Memory Capacity, GB32
    IP RatingIP67
    Operating Temperature,°C-20 ~ +50
    Weight(Without the 18500 Battery), g945
    Dimension, mm383 × 86 × 75
    Body MaterialAluminum
    Connections and CompatibilitiesMax. Recoil Power on Rifled Weapon (Eo), Joules6000
    Aim Point, MOA/CLICK0.2 (5.6mm@100m)
    MountStandard 30mmrings
    FunctionIR Illuminator**, nm850 / 940 (Optional)
    IR Power, w3
    Mount30mm Rings
    FunctionsLaser RangefinderSupport (Optional)
