Thermal Imaging Riflescope Rico Series
Thermal Imaging Riflescope Rico Series

Thermal Imaging Riflescope Rico Series

Thermal Imaging Riflescope Rico Series

The Rico series is a multifunctional and highly expandable infrared thermal imaging product. The product is featured with alterable laser rangefinder, detachable battery pack, eyepiece magnification up to 16 times, and comprehensive upgrade of software interface.

Meet Rico Series

The Rico series is a multifunctional and highly expandable infrared thermal imaging product. The product is featured with alterable laser rangefinder, detachable battery pack, eyepiece magnification up to 16 times, and comprehensive upgrade of software interface.With the updated, the Rico series also offers advanced image correction and automatic image optimization.


High Image Quality

The Rico series is embedded with an infrared, independently developed high performance VOx detector, which offers you vivid, highly detailed thermal images. It is easier to search for targets in the dark with amazingly sharp image quality.


AMOLED Micro Display

The high contrast AMOLED micro display with HD resolution offers sharp image and vivid colors. The display screen has excellent image quality and gives a flawless performance, even in freezing temperature.


Ultraclear Mode

The built-in ultraclear mode is especially designed for harsh weather conditions, such as in heavy fog and rain. It will be more sensitive and display more details.


User-Friendly Interface

Simple and easy to operate is the initial design intention of the Rico series. The vivid icon design offers a visualized guide and translucent background of the menu display, ensuring the user to observe the target unobstructed.


Picture-in-Picture

The Picture-in-Picture function improves accuracy by providing a 2 x-magnified image of the reticle area, at the top of the display. It helps to magnify the target while maintaining visibility of the entire field of view.




High Shock Resistance

The Rico series features exceptionally high shock resistance up to 1000 G.


12 µmThermal Imaging Sensor

High performance 12 μm pixel pitch detectors are embedded.


Expandable Laser Ranging Function

The Rico series offers laser ranging capabilities, which can accurately capture and display the target distance with an accuracy of ±1 m and a maximum distance of 1000 m.Integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Scanning mode allows the shooter to adjust quickly to changing distances for better shot placement.




Long detection range up to 2600 m

Powerful objective lens in combination with professional grade thermal imaging sensor with NETD≤40 mK provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 2600 m distance in complete darkness.


Replaceable Battery Pack

The Rico series support a 3.7 V, 4400 mAh large capacity battery pack that operates for 6 hours. With the ability to maintain continuous power supply at any time outdoors, it provides an ideal battery solution. The batteries can be quickly removed and replaced with new ones in a matter of seconds.




Video Recording

The Rico series offer video record and image capture during observation. The video and photo can be easily transmitted via wired or WiFi connection.The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 32 Gb of internal memory provide many hours of recorded video and tons of photos.




Built-in Accelerometer and Digital Compass

The built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles. It can indicate the direction and degree of lateral tilting.


Download

Reticle-RL42/RH50

Reticle-RL42/RH50

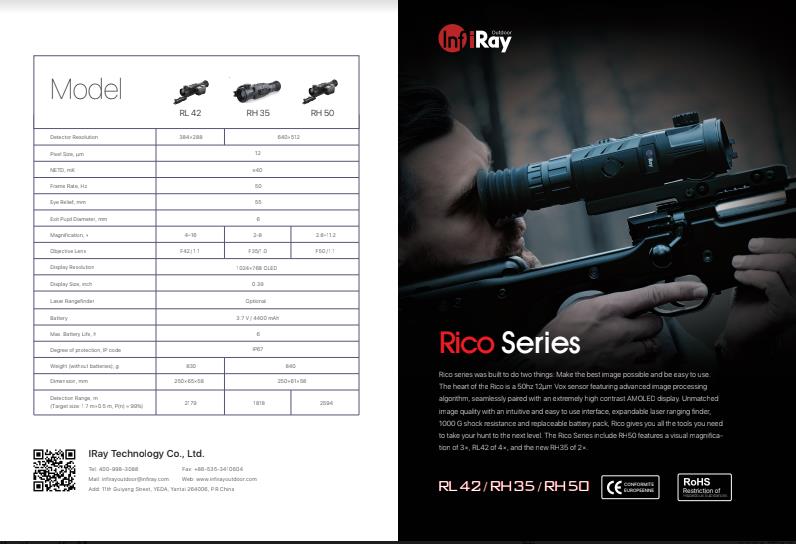

Brochure-RL42/RH35/RH50

Brochure-RL42/RH35/RH50

Manual-Rico Series

Manual-Rico Series
  • RL42
  • RH35
  • RH50
Detector Resolution384 × 288
Pixel Size,μm12
NETD,mK≤40
Frame Rate,Hz50
Eye Relief,mm55
Exit Pupil Diameter,mm6
Magnification,×4~16
ObjectiveLensF42/1.1
DisplayResolution1024 × 768AMOLED
DisplaySize,inch0.39
Laser RangefinderOptional
Battery3.7 V / 4400mAh
Max. BatteryLife,h6
Degreeofprotection, IPcodeIP67
Amount of built-in memory, GB32
Weight (withoutbatteries) ,g830
Dimension,mm250 × 65 × 58
Detection Range,m(Targetsize:1.7m×0.5m,P(n) = 99%)2179


Detector Resolution640 × 512
Pixel Size, μm12
NETD, mK≤40
Frame Rate, Hz50
Eye Relief, mm55
Exit Pupil Diameter, mm6
Magnification, ×2~8
Objective LensF35 / 1.0
Display Resolution1024 × 768 AMOLED
Display Size, inch0.39
Laser RangefinderOptional
Battery3.7 V / 4400mAh
Max. Battery Life, h6
Degree of protection, IP codeIP67
Amount of built-in memory, GB32
Weight (without batteries), g840
Dimension, mm250 × 61 × 58
Detection Range, m (Target size: 1.7 m× 0.5 m, P(n) = 99%)2179


Detector   Resolution640 x 512
Pixel   Size, μm12
NETD, mK≤40
Frame   Rate, Hz50
Eye   Relief, mm55
Exit Pupil   Diameter, mm6
Magnification, ×3~12
Objective LensF50 / 1.1
Display Resolution1024 × 768 AMOLED
Display Size, inch0.39
Laser   RangefinderOptional
Battery3.7 V / 4400mAh
Max.   Battery Life, h6
Degree of protection,   IP codeIP67
Amount of   built-in memory, GB32
Weight (without batteries), g840
Dimension, mm250 x 61 x 58
Detection Range, m (Target size: 1.7 m×0.5 m, P(n) = 99%)2594



  • Product Parameters Comparison
  • ModelRL42RH35RH50
    Detector  Resolution384 × 288640 x 512
    Pixel  Size,μm12
    NETD,mK≤40
    Frame  Rate,Hz50
    Eye  Relief,mm55
    Exit Pupil  Diameter,mm6
    Magnification,×4~162~83~12
    ObjectiveLensF42/1.1F35/1.0F50/1.1
    DisplayResolution1024×768AMOLED
    DisplaySize,inch0.39
    Laser  RangefinderOptional
    Battery3.7 V / 4400mAh
    Max.  BatteryLife,h6
    Degreeofprotection,  IPcodeIP67
    Amount of  built-in memory, GB32
    Weight(withoutbatteries),g830840
    Dimension,mm250 × 65 × 58250 x 61 x 58
    Detection  Range,m (Targetsize:1.7m×0.5m,P(n) = 99%)217918182594
