Thermal Imaging Rifle Scope Saim SCH50
Thermal Imaging Rifle Scope Saim SCH50

Thermal Imaging Rifle Scope Saim SCH50

Thermal Imaging Rifle Scope Saim SCH50

The cutting-edge design of the Saim SCH50 thermal imaging scope makes it a totally outstanding performer. Experienced users will have more options in tuning the image for different scenarios.

The affordable top-end thermal scope SCH50 among Saim Series provide you with beyond value experience with its 12 um 640×512 resolution, 1024×768 OLEDdisplay and integrated into adjustable image brightness and contrast functions to improve shooting and hunting playability. The first-time range notification function enables users to set the prey height and effective range.

MeetSaimSCH50


Higher Image Quality and New 1024×768 OLED

SCH50 adopts the 12um sensor with 640×512 resolution, objective lens of 50mm focal length, 1024×768 OLED display, and 48mm eye relief, more suitable for aiming. With the powerful sensor and image algorithm, better image quality is provided. The 50mm, F1.1 thermal lens brings more energy. In the ultra-clear mode, more details can be revealed in extreme weather such as rain and fog.




Ultra clear Mode

Ultraclear mode is specially for harsh environment, that make Saim be more sensitive and get more details.




Adjustable image brightness and contrast

Experienced users have more options in tuning the image for different scenarios. Users can adjust image brightness and contrast, providing better playability.


Adjustable image brightness and contrast.png

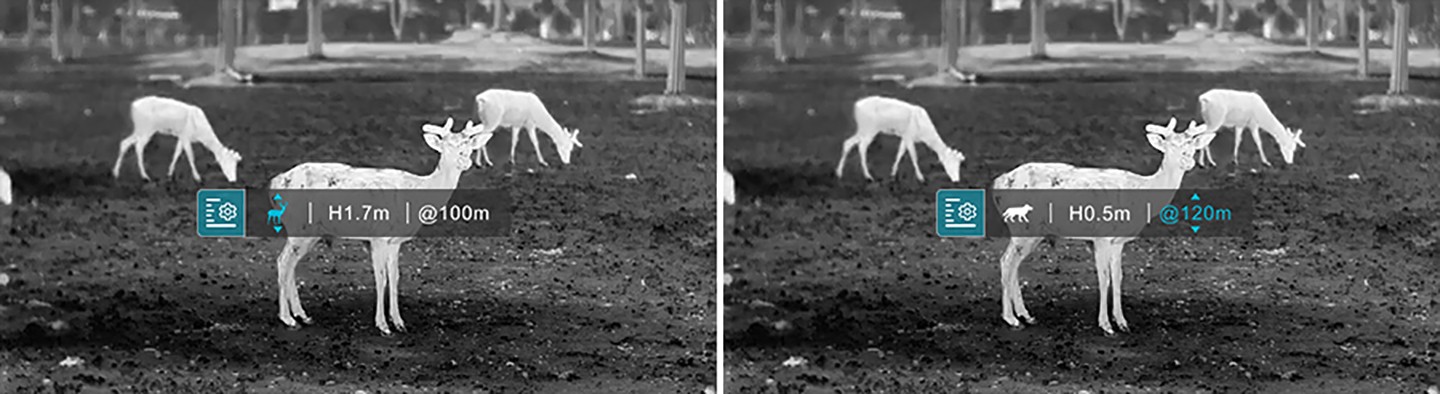

Target height setting and range notification

The function of setting the height of the target for stadia-metric rangefinder can adapt to the size of the prey in different areas. And first time range notification enables users to set the prey height and effective range. Through the notification line on the interface, users can easily determine whether the prey enters the range.

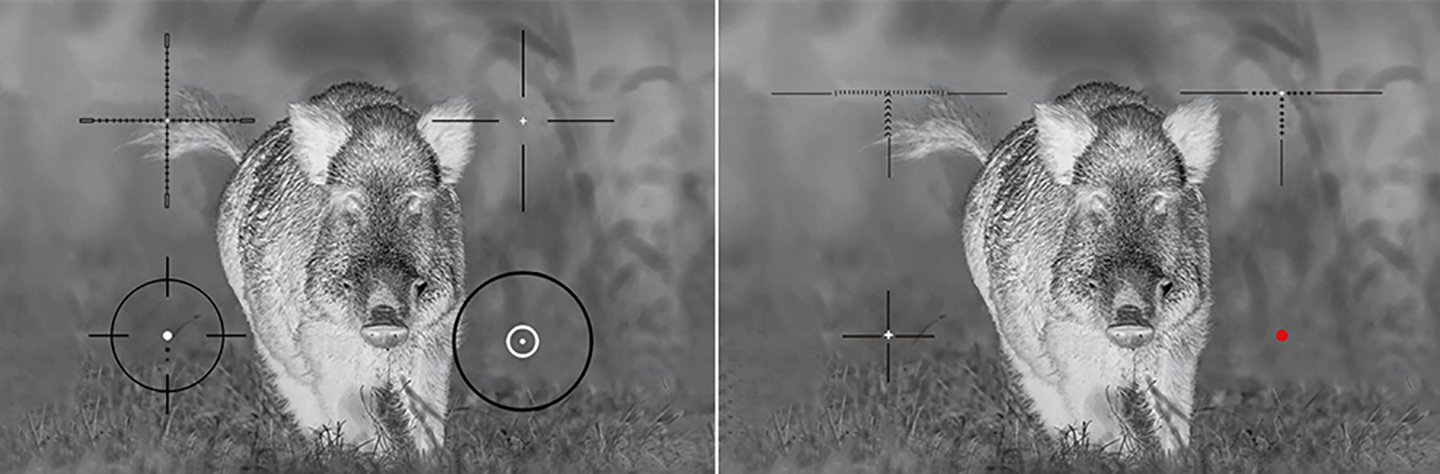

Eight Diff­erent Reticles and Greater 2.91 Visual Magnification

To satisfy different hunting requirements of users, 8 different reticles are designed for users to choose from. The more advanced 12u­m sensor is adopted, which has a greater visual magnification and detection range.




Easily upgrade function

Enhanced EMMC (Embedded Multi Media Card) upgrade function. Users can copy upgrade program into scope and upgrade it within the scope directly.


High Shock Resistance

The Saim Series features exceptionally high shock resistance up to 1000G.

Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375H&H,12-gauge and 9.3x64.


Extended battery compartment

The SCH50 series could equip with an extended battery compartment which means using two 16650 batteries is allowed, users can receive additional using time and the maximized battery life of SCH50 series is increased up to 7h.




Built-in Video Recorder and WIFI Connection

SCH50 is built with memory of 16GB which can support to store video and pictures.The wifi hotspot of the product supports simultaneous connection of four devices.




Built-in Accelerometer and Digital Compass

Built-in accelerometer and digital compass improve accuracy by precisely identifying angle and inclination.The Saim Series can indicate the direction and degree of lateral tilting.



Download

Reticle-SCH50

Reticle-SCH50

Brochure-SCH50

Brochure-SCH50

Manual-SCH50

Manual-SCH50
  • SCH50
Resolution640*512
Pixel Size, um12
NETD≤ 40mK
Frame Rate50Hz
Lens System50mm, F1.1
Optical Magnification2.91×
Field of view8.8°×6.6°
Magnification1×/2×/4×
Display1024×768 OLED
Detection Range2597m
Eye Relief48mm
BatteryCR123×2
Battery Life3.5h
Dimension, mm175×68×74
Weight< 570g


  • Product Parameters Comparison
  • ModelSCT35 V2SCH50
    Resolution384×288640×512
    Pixel Size,μm12
    NETD, mK≤40
    Frame Rate, Hz50
    Objective lens, mm3550
    Field of view7.5°x5.7°8.8°×6.6°
    Magnification, ×2.81~11.242.91~11.64
    Diopter Adjustment, D-5~+5
    Display Resolution1024×768 OLED
    E-zoom, ×1/2/3/4
    WiFi & Recorder
    Compass & Msensor
    Amount of built-in memory, GB32
    Battery TypeCR123×2
    Max. Battery Life, h3.5
    Weight (without batteries), g<420<570
    Dimension, mm195×61×61216×61×61
    Detection Range, m(Target size:1.7m×0.5m, P(n)=99%)18182597
