A hunting combo containing an entry-level thermal imaging monocular for searching and a middle-end digital night-vision Riflescope, both devices are from InfiRay Outdoor.

Meet With Hunting ComboAP13+TD50L


A hunting combo containing an entry-level thermal imaging monocular for searching and a middle-end digital night-vision Riflescope, both devices are from InfiRay Outdoor.




AP13 adopts a self-developed 12μmsensor@256×192 resolution and ensures high-quality thermal imaging, 13mm objective lens produce a great field of view. The device supports photo taking and video recording functions, has a built-in high-speed 32GB storage capacity.



TD50L adopts CMOS HDsensor@1440×1080 resolution featuring ultra-low light performance and HD display also integrated powerful algorithms. With 13-hour battery life and a replaceable external battery, also the traditional tubular design, the device suits the using habit of traditional hunters.


HD images with higher quality brought by the high-performance sensors and algorithms




Large internal memory storage and long battery life to meet the requirement of whole-night video recording

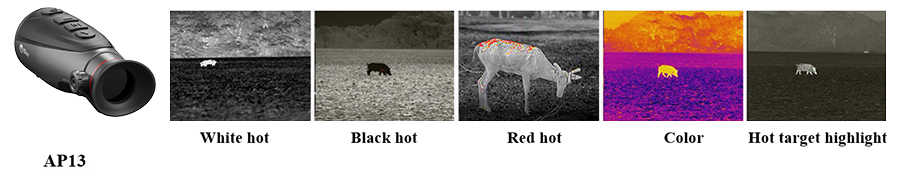

Multiple color palettes(AP13) and image modes(TD50L) to choose from





Un-visible IR laser (AP13), combined with digital night vision ensure the effective hunting


During the group hunting activities,980nm un-visible IR laser(AP13) can match better with TD50L digital night vision riflescope, without the fear that preys could be frightened away, more effective and more professional.

AP13 can be used for a quick searching preys and targets,meanwhile TD50L will act the role of precise shooting, perfect combination for group hunting!


  • AP13
  • TD50L
Thermal Imaging Resolution256×192
Pixel Pitch12um
NETD≤40mk
Frame Rate25Hz
Focal Length of Thermal Imaging Lens13mm
FOV13.5°×10.1°
Visual Magnification1.2×~2.4×
Digital Zoom1×, 2×
Diopter Adjustment-3D ~ +1D
WIFISupport
Detection Range (Target Size: 1.7m x 0.5m, P (n) =99%)675m
Display, resolution720×540 LCOS
InterfaceType-C/HDMI
Battery Life9.5h
Battery Type/CapacityBuilt-in Lithium Battery 103450  *2
Operating Temperature-10~+50℃
Ingress Protection RatingIP67
StorageBuilt-in 32GB memory
Weight≤340g
Dimensions, mm161×60×57
APP/Wi-FiSupport (InfiRay Outdoor)


Sensor resolution, pixelsCMOS 1440×1080
Pixel size, μm4×4
Frame Rate, Hz50
Objective Lens, mm50 (F1.2)
Field of  View, º6.6×4.9
Magnification, x4x~16x(4x Zoom)
Eye Relief, mm70
Resolution, pixels1280×960 LCOS
Capture/Video Record Resolution, pixels1280×960
Detection Range, m600
IR Illuminator Wavelength850nm /940nm (optional)
BatteryBuilt-in 6600mAh and a replaceable 18500 battery
Max. Operating Time (at temp.=22 ºC), h*>13
External power supply5V (Type C USB)
Diameter of the riflescope body to assemble the mounting rings, mm30
Max. Recoil Power on Rifled Weapon, g/s²1000
Degree of protection, IP code (IEC60529)IP67
Built-in Memory, GB16
Weight (without replaceable Battery), g<1000
Dimension, mm395×85×75
APP/Wi-FiSupport (InfiRay Outdoor)


  • Product Parameters Comparison
  • ModelAP13ModelTD50L
    Thermal Imaging Resolution256×192Sensor resolution, pixelsCMOS 1440×1080
    Pixel Pitch12umPixel size, μm4×4
    NETD≤40mkFrame Rate, Hz50
    Frame Rate25HzObjective Lens, mm50 (F1.2)
    Focal Length of Thermal Imaging Lens13mmField of View, º6.6×4.9
    FOV13.5°×10.1°Magnification, x4x~16x(4x Zoom)
    Visual Magnification1.2×~2.4×Eye Relief, mm70
    Digital  Zoom1×, 2×Resolution, pixels1280×960 LCOS
    Diopter Adjustment-3D ~ +1DCapture/Video Record Resolution,  pixels1280×960
    WIFISupportDetection Range, m600
    Detection Range (Target Size: 1.7m x 0.5m, P (n) =99%)675mIR Illuminator Wavelength850nm /940nm (optional)
    Display,  resolution720×540 LCOSBatteryBuilt-in 6600mAh and a replaceable 18500 battery
    InterfaceType-C/HDMIMax. Operating Time (at temp.=22  ºC), h*>13
    Battery  Life9.5hExternal power supply5V (Type C USB)
    Battery  Type/CapacityBuilt-in Lithium Battery 103450  *2Diameter of the riflescope body  to assemble the mounting rings, mm30
    Operating  Temperature-10~+50℃Max. Recoil Power on Rifled  Weapon, g/s²1000
    Ingress  Protection RatingIP67Degree of protection, IP code  (IEC60529)IP67
    StorageBuilt-in 32GB memoryBuilt-in Memory, GB16
    Weight≤340gWeight (without replaceable  Battery), g<1000
    Dimensions,  mm161×60×57Dimension, mm395×85×75
    APP/Wi-FiSupport (InfiRay Outdoor)APP/Wi-FiSupport (InfiRay Outdoor)
